Ultrasonics is a clean and efficient method of joining or slitting synthetic materials.While the initial investment is much more, the long term benefits more than pay for itself.

Ultrasonic bonding uses high frequency sound to generate localized heat through vibration and causes thermoplastic fibers to bond together. Suppliers in the industry say the technology offers several advantages.

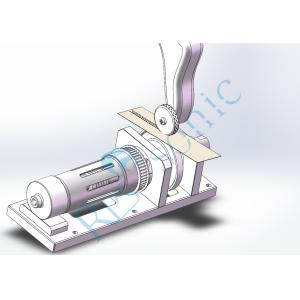

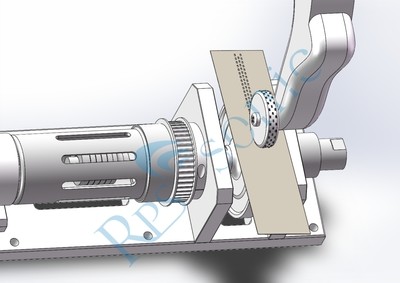

A rotary ultrasonic assembly mounted in a bearing housing that can be mounted in any orientation. It is available in 20, 35 kHz with bond widths of up to15MM. The bonder is intended for machinery manufacturers and experienced end users who desire to develop their own actuation and tooling solutions. Ultrasonic Sewing Machines operate like a traditional rotary sewing machine but produce soft, smooth seams that are impervious to moisture or fluids.

Rps-sonic supply high power rotary ultrasonic systems to the packaging, hygiene and specialty converting industries.

Unrivaled attribute: Continuous welding force monitoring!

ALL welding parameter are measured and regulated "speed, energy AND force"

Innovative dual roller system: Cutting wheel can be activated by motor

New: Versatile platform for various options:

- motorized puller

- simple parallel puller

New touch screen (simple handling with user-friendly icons)

20khz new rotray horn design , more powerful than 35Khz.

Digital generator, frequency auto tracking.


Features:
Stand-alone system enables flexibility and tight turns in sealing and/or cutting, and provides unobstructed view of fabric in the processing area
Two-position foot switch facilitates operation - first position raises and engages the rotary wheel, applying force to the material being processed; second position activates ultrasonics and wheel rotation
Operator-selectable maximum operator speed enables operator to set maximum feed speed at the fully depressed foot switch position setting
Designed for operator safety - no needles or other moving parts above the work surface
Operator controls conveniently located on control panel, including pneumatic pressure regulator; on/off switch; power on indicator; and nip control
Various sealing patterns available, including standard single stitch, right or left slant, and zigzag; custom-designed patterns also available at additional fee
Typical applications include protective garments, disposable hospital gowns and shoe covers, face masks, infants' nursery garments, filters, bags, curtains, sails, and web splicing.

Service and shipment

l Warranty one year for transducer.

l You can contact us for technical inquiry any time.

l We supply OEM service for oversea customer, also will keep Confidentiality for our customers.

l We supply customized products service for small quantity also.

l Shipment by FED-EX /DHL

R-Responsibility P-Products S-Service

sale the right products instead of the expensive one

Rps-sonic, consisted with a couple of young people who love ultrasonic very much.The founding members of RPS-SONIC have an average degree of Bachelor's degree or above. They have been in the ultrasonic industry for more than 5 years and have rich experience in ultrasound. The company's business philosophy is: Do not blindly promote any product, find the right product for the customer. So before each order, we will confirm all the details, including application details, equipment conditions, equipment specific information.

And we have the Professional import and export company， HangZhou LanBen Trade Co., Ltd, can export to any country wordwide.

Before year 2012, we only sale second branson / dukane / rinco / herrman/telsonic welding equipment , during these twenty year develop, we find, more and more people have problem with the core part of ultrasonic welding equipment -generator and transducer, so we decided to start our business of transducer and generator of our own transducer and generator. Many of the end user meet the transducer problem, they don’t know why transducer broken, and changing the expensive transducer one by one. Actually, one branson /dukane /rinco transducer can use 10~30 year, even the cheapest transducer can use about 5 years. So there must some reasons if your transducer broken in one year. That’s why we want build Rps-sonic, we need to help more end user to know more about transducer , to use ultrasonic equipment better, to save cost when meet problem.

The same to generator, Unreasonable operation may shorter the use-life of ultrasonic generator. So we have to make technical inquiry before operate ultrasonic welding machine. The key point of ultrasonic machine is resonance, only keep every part in resonance can make the system in best work environment.

Till now , we still have a lot of Branson /dukane/ rinco/ herrman telsonic welding machine, so that we can confirm every transducer/generator we made can matching to the original machine.

Of course we can make the transducer/generator replace for Branson /dukane/ rinco/ herrman telsonic welding machine, we can also make transducer/generator for any application of your ultrasonic equipment. We supply OEM service for oversea customers, we already have OEM customer in USA and German.

If you have any problem in ultrasonic area, welcome contact Rps-sonic.
